PRODUCT SPECIFICATION
Frequency Range (+/-3 dB) [Hz]
|
48 – 22,000 |
Maximum SPL [dB] | 2 x 103 |
Crossover Frequency [Hz] | 3,000 |
Crossover Principle | DSP based digital IIR, 2. order |
High frequency driver, Quantity | 2 x 25 mm |
High frequency driver, Diaphragm type | Soft Textile Dome |
Low frequency driver, Quantity
|
2 x 5,25″ |
Low frequency driver, Diaphragm type | Wood Fibre Cone |
Enclosure type | Closed Box |
Amplifier Type | Fully digital Class D, open loop type |
Continous IEC Power Output [RMS watt] | 4 x 25 |
Input Impedance [ohms] | 25k |
Connection Input
|
3.5 mm Mini Jack
RCA
Optical (Toslink)
USB (Micro)
|
Connection Output
|
SUB Out
USB Charge Output (5V/1A)
|
Wireless Input(s)
|
BlueTooth Apt-X |
Magnetic Shielding | No |
Recommended Placement
|
Shelf or stand
On-Wall
Centre / Soundbar
Bluetooth
|
Recommended Distance From Wall [cm]
|
0 – 30 |
Functions
|
IR Learning
Power ON/OFF
Source Select
Standby (Auto Power) On/Off Switch
Volume
Volume (Gain)
|
Max. Power Consumption [W] | 150 |
Standby Power Consumption [W] | <0,5 |
PRODUCT DESCRIPTION

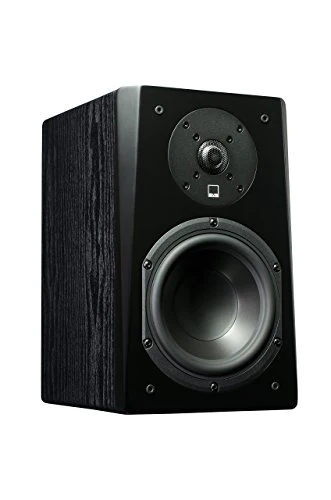

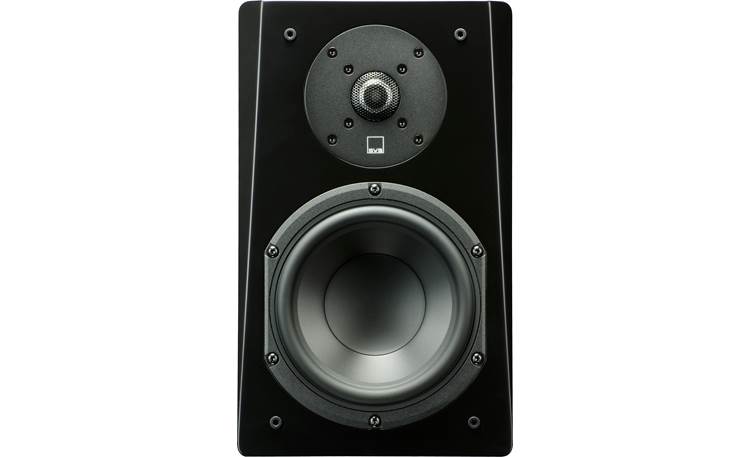

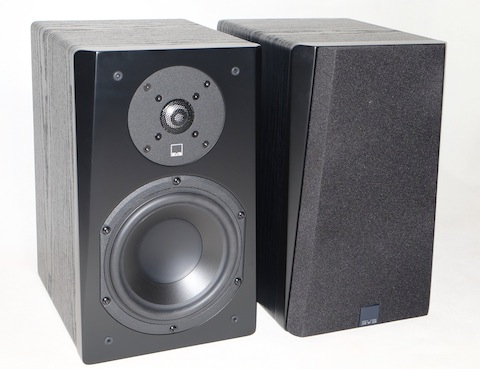

SVS SOUND PRIME BOOKSHELF
High-end in every way but price, the SVS Prime Bookshelf speakers deliver amazingly refined sound quality and stunning dynamics as fronts, surrounds, center channel or other loudspeakers in a 2-channel audiophile or home theater surround sound system.
The Prime Bookshelf speakers are sonic overachievers on all levels. Stunningly dynamic, pinpoint accurate and utterly transparent, they deftly serve as reference monitor loudspeakers in a two-channel system, or as high performance front, center, or side/rear surround speakers in a multi-channel home theater.
Borrowing engineering and design cues from the acclaimed Ultra Series and embodying all the traits of a truly high-end speaker, the Prime Bookshelf speakers convey accurate spatial imaging, throw an expansive soundstage and deliver uncompromising fidelity throughout the frequency spectrum. The effortless low frequency extension, commanding but detailed midrange and airy, unveiled highs far exceed expectations of other speakers in its class. Even the cabinet geometry and internal bracing are optimized for uncompromised audio playback and complemented by stunning piano gloss and black ash finishes.
Standing out among the crowd of bookshelf speakers is no easy task, yet the Prime Bookshelf defies convention to outperform reference monitors costing twice as much or more. Every aspect of the Prime Bookshelf speaker was designed for sonic excellence. From the premium grade driver and sophisticated SoundMatch crossover to the extra-thick baffle, internal bracing, and FEA optimized tweeter diffuser, the Prime Bookshelf speaker’s design and engineering credentials put it in the realm of much costlier, and much larger speakers.
PRIME DRIVER & TWEETER DESIGN
Thoughtfully designed for acoustic excellence, the Prime Bookshelf speaker’s 6.5-inch woofer is mounted in its own dedicated and completely sealed compartment to ensure smooth, precise and clear midrange and bass output that’s free from coloration. The cone material is extremely light and rigid and maintains a flat frequency response with excellent handling across the foundational mid-range frequencies. Low frequency extension is shockingly deep and effortless considering the cabinet size and the Prime Bookshelf speaker can hit reference volume with amazing clarity, no distortion and headroom to spare.
The Prime Bookshelf speaker’s 1-inch aluminum dome tweeter is light, efficient, and rigid, and plays crystal clear at high volumes. The clarity offers a sense of utter transparency, while offering an ‘airy’ presentation and incredibly unveiled highs so female vocals and dialogue and high pitched sound effects and musical content always sound crisp, smooth and natural.
INNOVATIVE SOUNDMATCH CROSSOVER DESIGN
Since premium drivers require an equally capable crossover, no expense was spared with the innovative SVS SoundMatch 2-way crossover. Its tapered array is designed to minimize the potential for beaming. This creates an expansive, yet focused and precise soundstage, with accurate frequency response at all listening positions in the room. The precise tuning of the SoundMatch Crossover also ensures pinpoint accuracy of highs, mids, and lows, while maintaining pristine signal purity.
PERFORMANCE DRIVEN CABINET DESIGN AND GEOMETRY
Tapered edges on the Prime Bookshelf speaker’s front baffle, known as chamfers, minimize edge diffraction for clear and precise soundstaging. The cabinet’s presence offers a modern industrial feel with acoustic enhancements like shorting rings and a tweeter diffuser which add performance-driven style. All advancements are packed into a compact but attractive cabinet, that’s easily mountable anywhere, and available in stunning piano gloss black or premium black ash finish.
SPECIFICATION
SPEAKER SPECS
Bookshelf Loudspeaker
Black ash and piano gloss black finish options
Single set of 5-way binding posts
1.7” wide-flared rear-firing port
Cloth grille with pin/cup retention system
Elastomer stick-on bumper feet (adds 3mm to height)
Cabinet Dimensions: 13.2″ (H) X 8″ (W) X 9.7″ (D)
Overall Dimensions: 13.3″ (H) X 8″ (W) X 10.3″ (D) (includes grille and bumper feet)
Shipped Dimensions-2 Pack: 17.6″ (H) X 22.4″ (W) X 14.4” (D)
Weight: 15.5 pounds
Shipped Weight-2 Pack: 34.7 pounds
DRIVER SPECS
1” Aluminum Dome Tweeter:
FEA-optimized diffuser for airy and unveiled presentation
Aluminum dome for exceptional transient response
6.5” Woofers:
Long stroke motor and suspension for high output
Polypropylene cone for excellent stiffness/mass ratio and pistonic behavior
Aluminum shorting ring to reduce gap inductance, lower distortion, and enhance high frequency response
Cast ABS-fiberglass composite basket ensures precision component alignment and excellent thermal transfer
Vented voice coil former minimizes air compression artifacts
CROSSOVER & CABINET SPECS
Crossover:
2-way crossover with premium-grade capacitors, air-core inductors and heavy-trace printed circuit boards
Crossover network delivers outstanding phase coherency and time domain behavior
Tweeter-to-woofer crossover: 2.3 kHz (12 dB/octave slopes)
Cabinet:
Acoustically transparent and FEA optimized grilles minimize diffraction
FEA-optimized cabinet and bracing eliminates resonances
Chamfered front baffle and flush-mounted drivers reduce edge diffraction and improved on-axis high frequency response
WARRANTY : 1-year manufacturer’s warranty
