PRODUCT SPECIFICATION
Features
|
Includes both round and square zero-bezel magnetic grilles
Round grille finished dimension (dia.) 9.1″ (23.1 cm)
|
High Frequency Driver Components
|
1″ aluminum domes swiveling high-output tweeter with waveguide |
Low Frequency Extension
|
High Frequency Extension 3-position HF level control / Low Frequency Extension LF boundary compensation |
Mounting
|
C-2 fastening mechanism
Compatible with wall material thickness range 0.5″ – 2.0″ (1.3 cm – 5.0 cm)
|
Mid-Frequency Driver Components
|
Two 3.5″ micro-ceramic composite (MCC) cone
Cast-aluminum frame high-output midranges
|
Recommended Amplifier Power
|
10 – 140 Watts RMS |

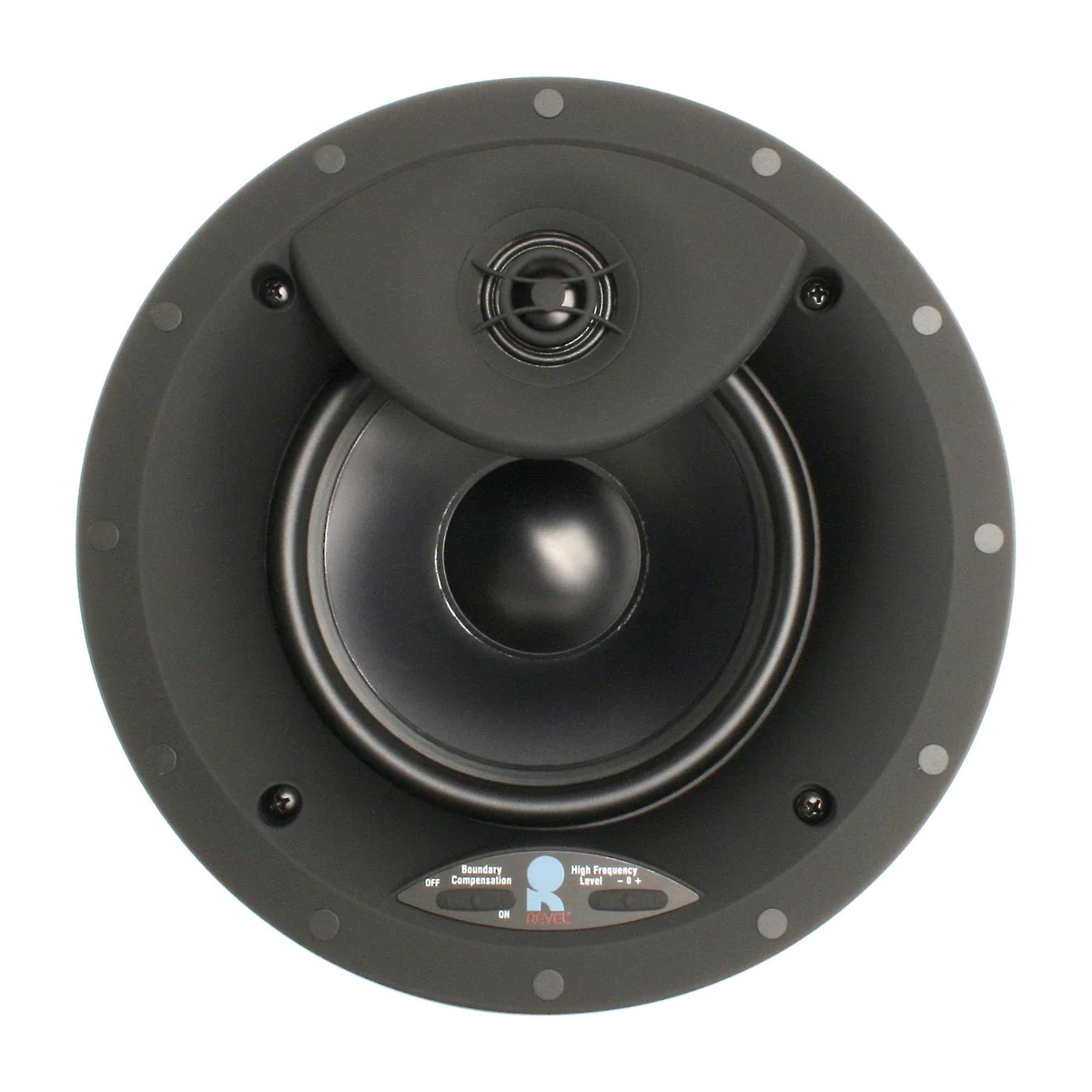

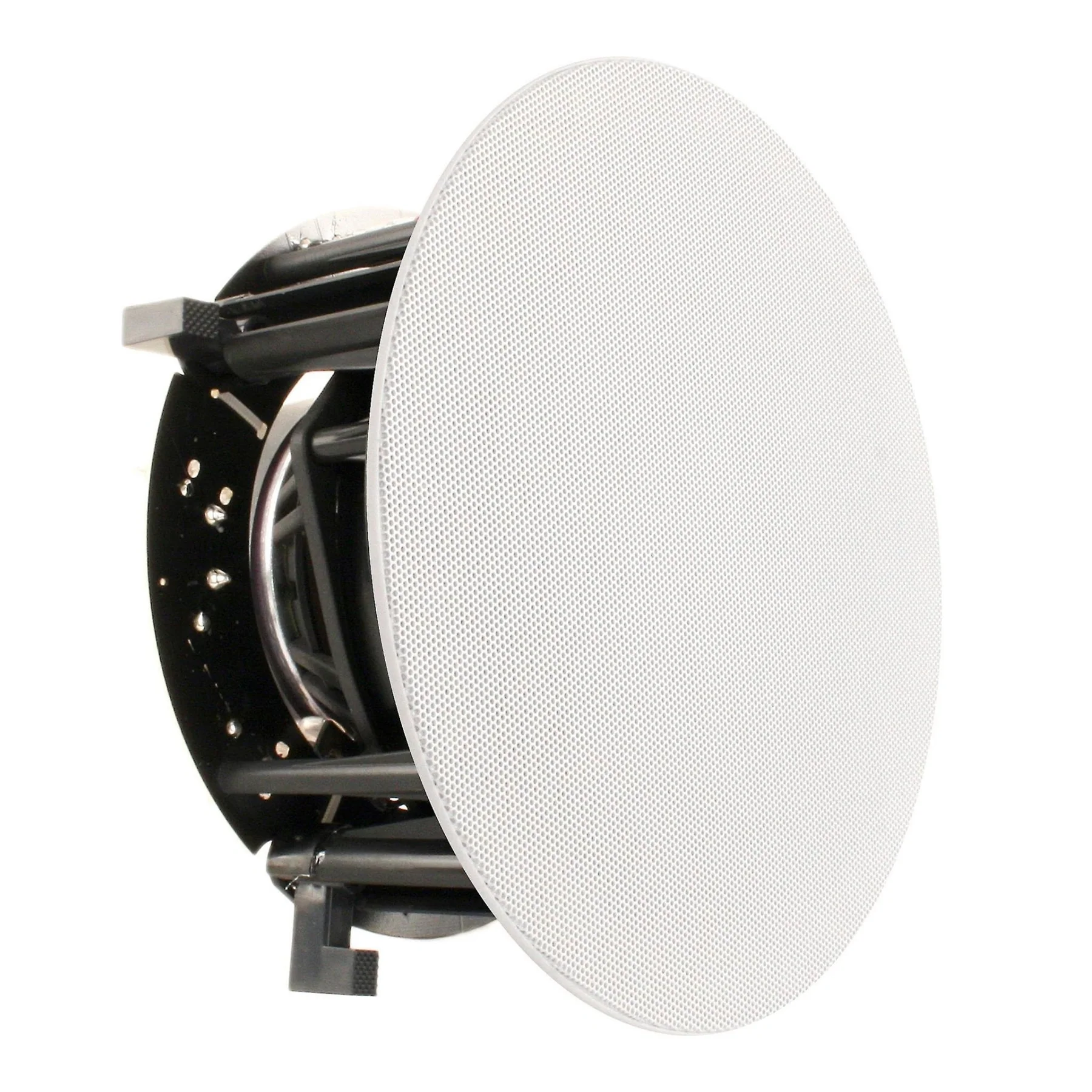

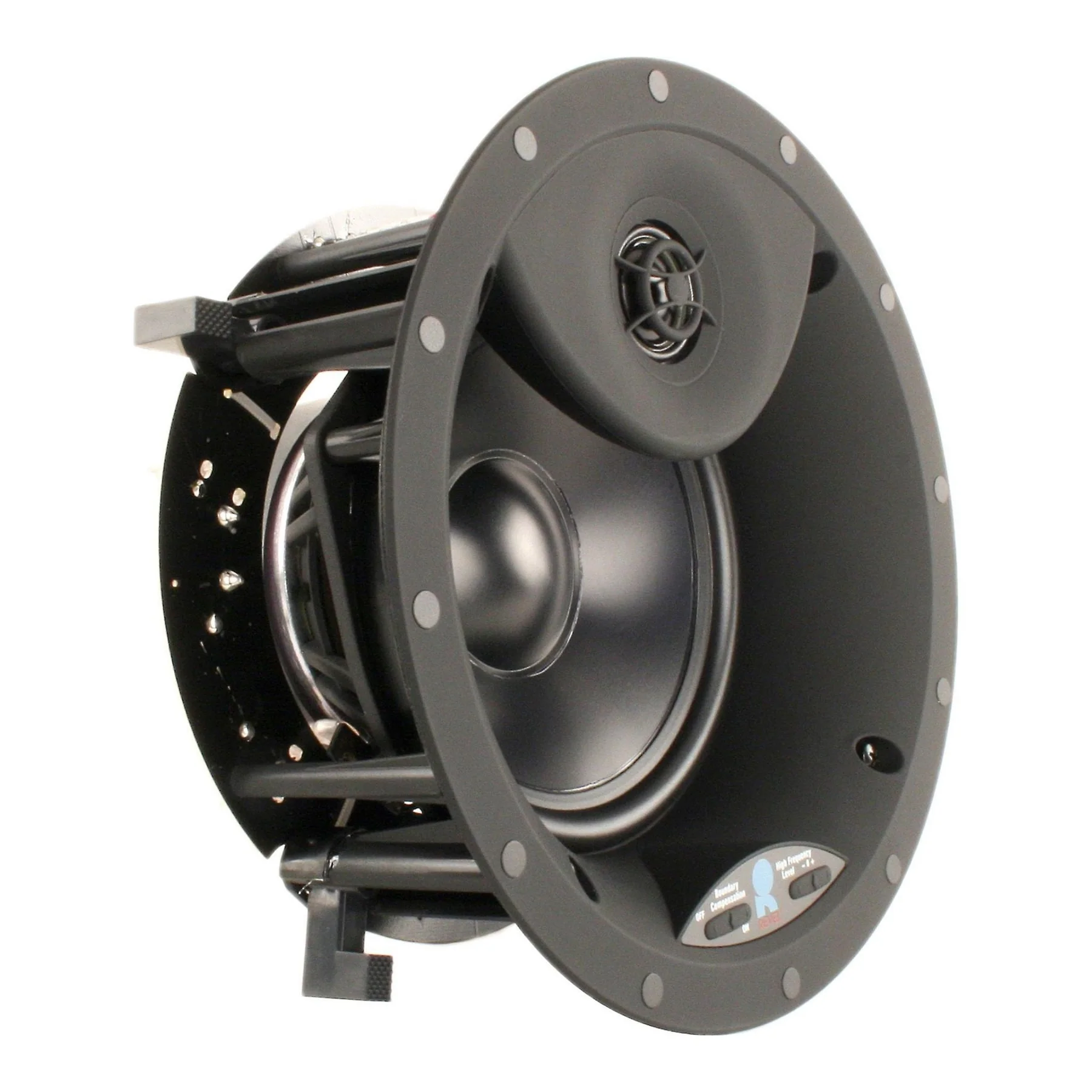

C763
Revel in-ceiling loudspeakers draw upon the same research, resources, and unique perspectives that put all our loudspeakers in a class by themselves. Each model offers a standard-setting low sonic coloration and freedom from distortion over a wide dynamic range.
C763 HIGHLIGHTS
Long-throw woofers with cast frames and rubber surrounds provide high output with low distortion
1-inch (25mm) angle-adjustable, metal-dome tweeter with an integrated waveguide provides optimized response both on and off axis

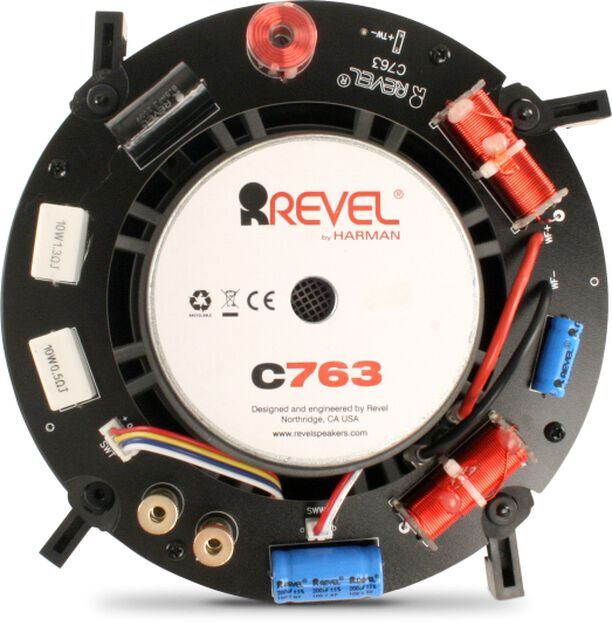

High-order crossover network with premium-quality components delivers extraordinarily accurate timbre reproduction
Boundary compensation switch (C783/C763) lets you adjust the speaker to maintain tonal accuracy when the speaker is placed near a wall
Three-position tweeter level control (C783/C763/C583/C563) lets you adjust for optimum response in a variety of acoustical environments, or for using the speakers without grilles.
WARRANTY : 1-year manufacturer’s warranty
DECLARATION: All Pre-order/On-Order/Special-Color takes minimum 4-7 weeks to arrange from brand. Please speak with Customer Support Representative incase of any queries of delivery time.
