PRODUCT SPECIFICATION
Brand & Model | B&W HTM71 S3 center speaker |
Technical features | Decoupled Carbon Dome tweeter Solid Body Tweeter-on-Top Continuum™ cone FST™ midrange Aerofoil™ Profile bass cones Flowport™ |
Description
|
3-way vented-box system
|
Drive units | 1x ø25mm (1 in) Decoupled Carbon Dome high-frequency 1x ø130mm (5 in) Continuum cone FST midrange 2x ø130mm (5 in) Aerofoil Profile bass |
Frequency range
|
45Hz – 33kHz
|
Frequency response |
50Hz – 28kHz ±3dB
|
Harmonic distortion |
2nd and 3rd harmonics (90dB, 1m on axis)
<1% 90Hz – 22kHz <0.5% 120Hz – 20kHz |
Sensitivity | 89dB spl (2.83Vrms, 1m) |
Nominal Impedance | 8Ω (minimum 3.1Ω) |
Recommended Amplifier Power | 30W – 200W into 8Ω on unclipped programme |
Max recommended cable impedance | 0.1Ω |
Cabinet finishes | Gloss Black Satin White Mocha |
Grille finishes | Black Grey (Satin White only) |
Dimensions |
Height: 165 mm cabinet only
233 mm including tweeter |
Weight |
17.45kg (38.4 lb)
|
KEY FEATURES
1 x 1″ Decoupled Carbon Dome Tweeter
1 x 5″ Continuum Cone FST Midrange
2 x 5″ Aerofoil Profile Woofers
50 to 28 kHz Frequency Response
Supports 30 to 200W of Power
Dual Connections for Bi-Wiring
Enjoy dynamic audio and clear, easily understood dialogue by adding the mocha HTM71 S3 3-Way Center Channel Speaker from Bowers & Wilkins to your TV. Whether you’re upgrading your TV’s audio or building a new 700 Series surround sound system, you will enjoy high-fidelity audio from the HTM71 S3’s single 1″ decoupled carbon dome tweeter, 5″ Continuum cone FST midrange driver, and dual 5″ Aerofoil Profile woofers.
TWEETER-ON-TOP
The 1″ decoupled carbon dome tweeter is featured in a tweeter-on-top design, housed in a frame that’s been milled from a single block of aluminum for better resistance to resonance. With the HTM71 S3, the tweeter now utilizes a carbon dome, which raises the breakup threshold to 47 kHz, further improving the accuracy of higher frequencies.
CONTINUUM CONE MIDRANGE
The 6″ midrange driver incorporates a composite construction that does not hinder the speaker’s performance. Four Bowers & Wilkins technologies are employed to ensure clean and neutral vocals and instrument representation, without interference from the woofers. The four technologies used are a Continuum cone, FST, biomimetic suspension, and midrange decoupling.
ADDITIONAL FEATURES
Supports up to 200W of amplified power
Dual connections support bi-wired setup
Variable thickness woofers for improved rigidity
Flowport
FINISHING
Gloss Black
Satin White

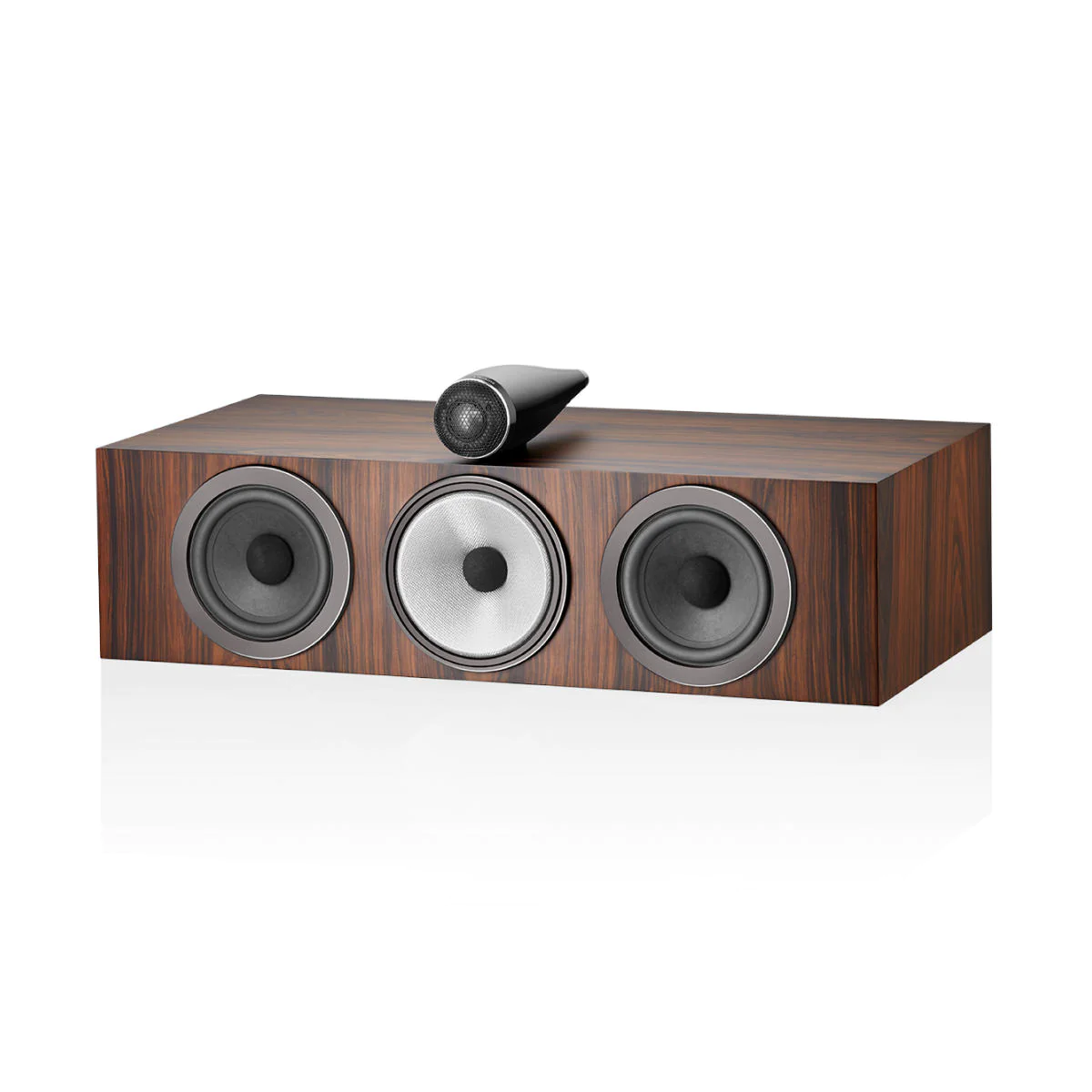

Mocha
IN THE BOX
Bowers & Wilkins HTM71 S3 3-Way Center Channel Speaker (Mocha)
Grille
Foam Plug
Self-Adhesive Rubber Feet
Limited 5-Year Warranty
WARRANTY : 1-year manufacturer’s warranty
DECLARATION: All Pre-order/On-Order/Special-Color takes minimum 4-7 weeks to arrange from brand. Please speak with Customer Support Representative incase of any queries of delivery time.
