PRODUCT SPECIFICATION
Brand & Model |
B&W CCM684 |
Description |
2-way in-ceiling system
|
Drive Units |
1x ø25mm (1in) soft dome tweeter 1x ø200mm (8in) black glassfibre cone bass/midrange
|
Frequency Range (-6dB)
|
35Hz – 35kHz
|
Recommended Amp Power
|
25 – 130w
|
Sensitivity SPL (2.83V, 1m)
|
88dB
|
Impedance Nominal (min)
|
8Ω (4.5Ω)
|
Frame diameter
|
290mm (11.4in)
|
Cut-out diameter
|
250mm (9.8in)
|
Depth behind surface
|
133mm (5.2in)
|
Protrusion
|
4mm (0.2in)
|
PRODUCT DESCRIPTION
CCM684

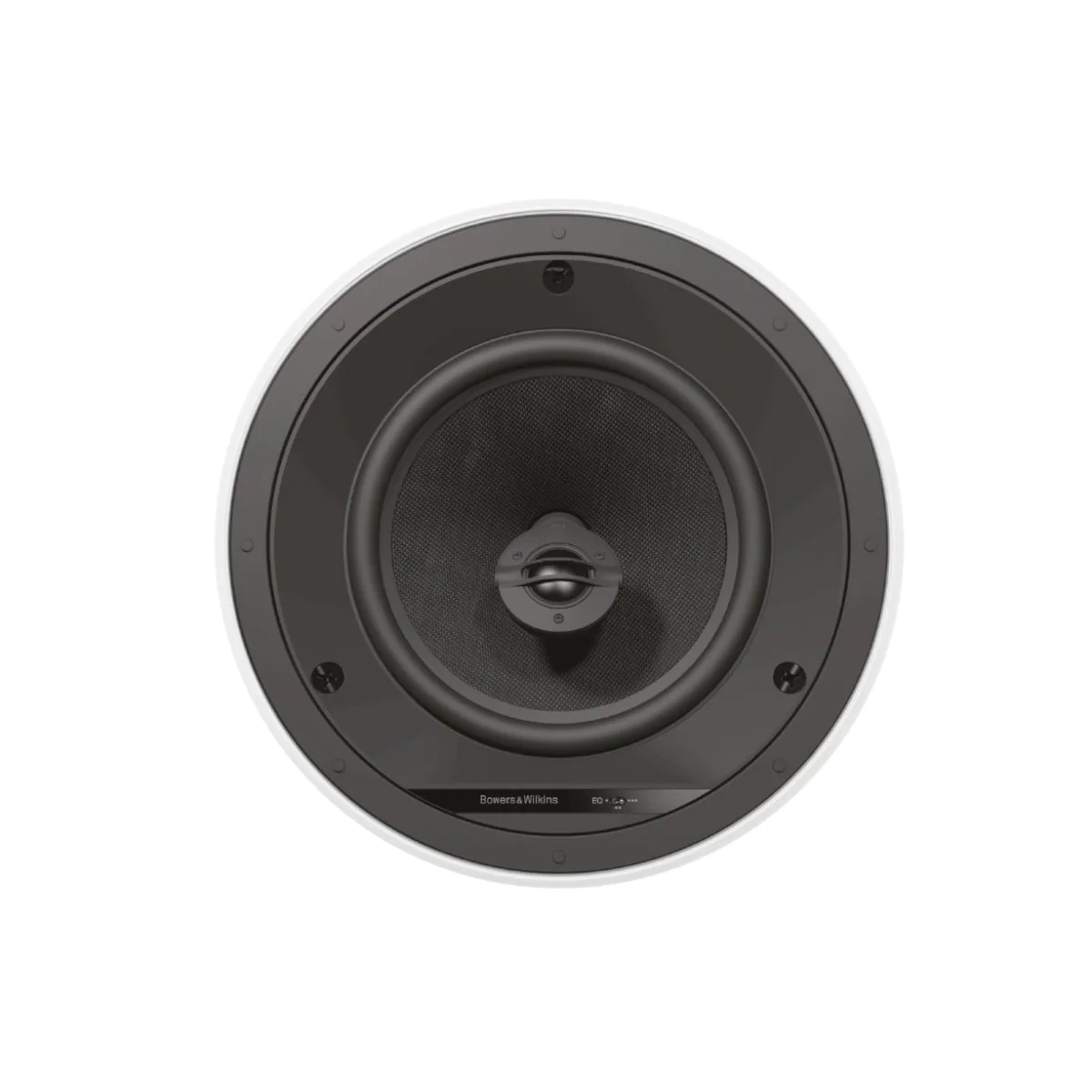

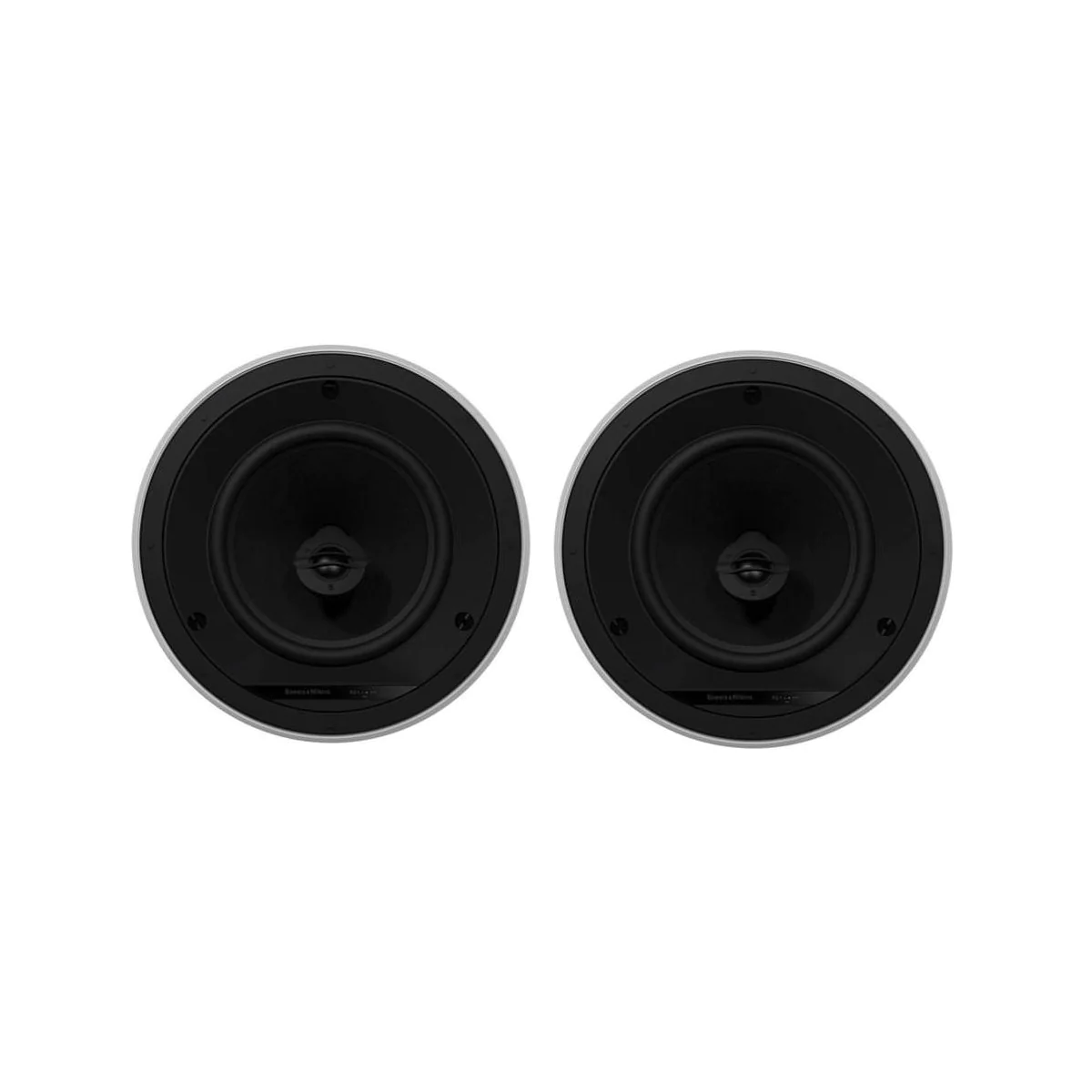

The CCM684 is an affordable entry into Bowers & Wilkins 8″ recessed ceiling speakers. A 1″ soft dome tweeter and 8″ black glassfibre midrange/bass cone distinguish this speaker from the other speakers in this series. Like B&W’s other 8″ recessed ceiling speakers, the CCM684 is equipped with a pivoting tweeter for help with off-axis treble response and an EQ switch providing similar aid for the speaker. And fear not, Bowers & Wilkins include the same easy install QuickDogs™ system on the CCM684 included across their Custom Installation Series. If you’re looking for recessed ceiling speakers and like the low tones of large cones, the CCM684 can give you the bang you’re looking for while saving a buck.
KEY FEATURES
Sold As Each
8″ Woven Glass Fiber Cone Bass/Midrange Driver
1″ Soft Dome Tweeter
Adjustable Tweeter Housing
EQ Switch
QuickDogs
Plug-And-Play Functionality For Easy Installation
35Hz-35kHz Frequency Range
88dB Sensitivity
White Grill
Black Finish
WARRANTY : 1-year manufacturer’s warranty
