PRODUCT SPECIFICATION
Brand & Model |
B&W CCM683 |
Description |
2-way in-ceiling system
|
Drive Units |
1x ø25mm (1 in) Nautilus™ swirl loaded aluminium dome tweeter 1x ø200mm (8in) blue Aramid Fibre cone bass/midrange
|
Frequency Range (-6dB)
|
35Hz – 50kHz
|
Recommended Amp Power
|
25 – 130w
|
Sensitivity SPL (2.83V, 1m)
|
88dB
|
Impedance Nominal (min)
|
8Ω (4.5Ω)
|
Frame diameter
|
290mm (11.4in)
|
Cut-out diameter
|
250mm (9.8in)
|
Depth behind surface
|
133mm (5.2in)
|
Protrusion
|
4mm (0.2in)
|

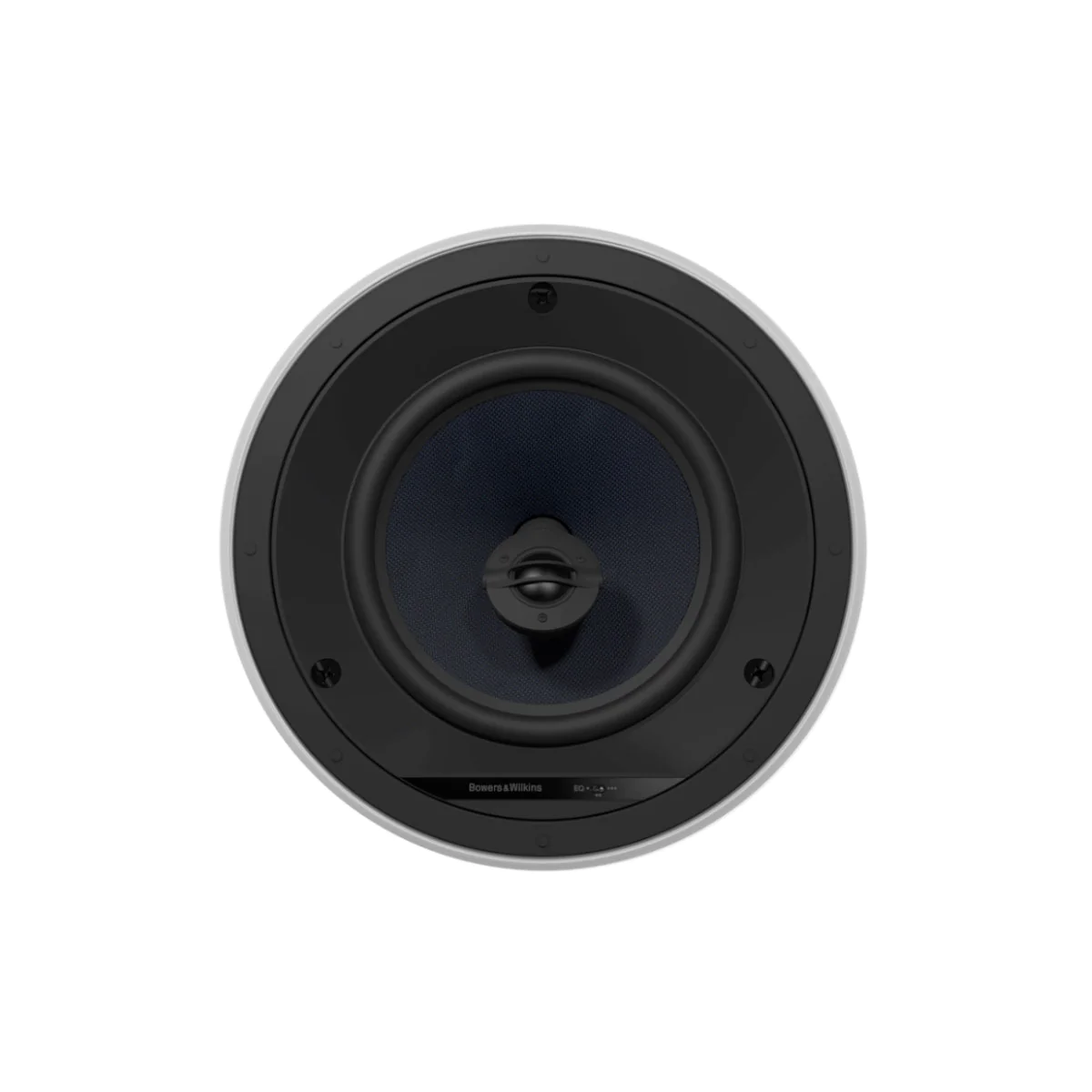

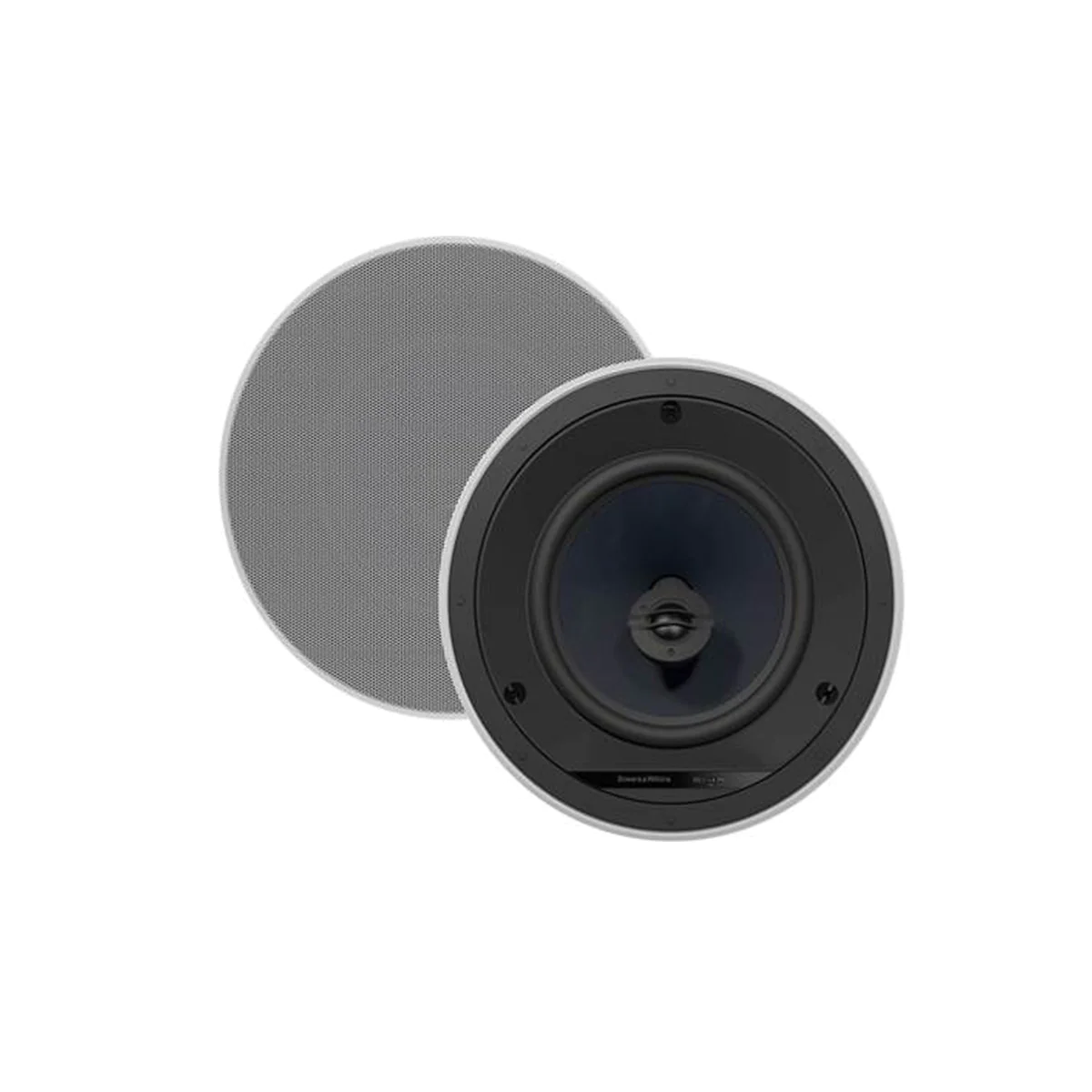

CCM683
Bowers & Wilkins high performance CCM683 directional ceiling speakers share the majority of the features of the CCM682, just with a slightly lower maximum amp power of 130W. Like its beefier brother, the CCM683 forges vibrant highs with Nautilus™ swirl loaded aluminum tweeters which can be adjusted to ensure exceptional sound quality where it’s most needed. To improve off-axis response, the directional ceiling speakers also feature a three-position EQ switch. An 8″ Aramid Fibre cone thunders in its die-cast chassis as the true driving force behind these incredible speakers.
Making sure you get the most out of these directional ceiling speakers, Bowers & Wilkins simplify the install process for the CCM683. With the QuickDogs™ fixing system, the speakers sit secured with just a few snaps. Let the CCM683 remind you of the flourishes you’ve forgotten in your favorite song.
KEY FEATURES
Sold As Each
Lower Maximum Amp Power Of 130W
Comes With 8in Aramid Fiber Bass
Midrange Driver
Nautilus Swirl-Loaded Aluminum Dome Tweeter
Three-Position EQ Switch
WARRANTY : 1-year manufacturer’s warranty
DECLARATION: All Pre-order/On-Order/Special-Color takes minimum 4-7 weeks to arrange from brand. Please speak with Customer Support Representative incase of any queries of delivery time.
