PRODUCT SPECIFICATION
Brand & Model | B&W 805 D4 Signature |
Enclosure Type |
2-way vented-box system
|
Technical Features | Diamond tweeter Solid Body Tweeter-on-Top Continuum™ cone bass/midrange Matrix™ Anti-Resonance plug Flowport™ |
Drive Units |
1x ø25mm (1in) Diamond Dome high-frequency
1x ø165mm (6.5in) Continuum™ cone bass/midrange |
Frequency Range |
-6dB 34Hz to 35kHz
|
Frequency Response | 42Hz to 28kHz ±3dB |
Harmonic distortion |
2nd and 3rd harmonics (90dB, 1m on axis)
<1 % 90Hz – 20kHz |
Sensitivity |
88dB spl (2.83Vrms, 1m)
|
Nominal Impedance |
8Ω (minimum 4.6Ω)
|
Recommended Amplifier Power |
50W – 120W into 8Ω on unclipped programme
|
Max. recommended cable impedance
|
0.1Ω
|
Dimensions |
Height: 440mm (17.3in)
Width: 240mm (9.4in) |
Weight |
15.55kg (34.3 lb)
|
Cabinet Finishes | California Burl Gloss Midnight Blue Metallic |
Grille Finishes | Black Black |
PRODUCT DESCRIPTION
805 D4
The 805 D4 stand-mount loudspeaker is the most compact model in the 800 Series Diamond™ range, but it’s still packed with advanced technologies, including the Diamond dome tweeter and the Solid Body Tweeter-on-Top.
* Stand(s) not included
LITTLE DIAMOND
805 D4 might be smaller than its tower speaker siblings, but it’s no lightweight: its beautifully constructed Reverse-Wrap cabinet, stiff aluminum bass pods and 165mm (6.5-in) Continuum™ mid-bass cone afford it exceptional bass extension and scale for a relatively compact speaker.
DIAMOND DOME TWEETER
One of B&w’s most significant accomplishments over the past two decades, the ultra-stiff, supremely accurate Diamond dome tweeter is the perfect combination of low mass, exceptional stiffness and outstanding accuracy. 15 years after B&w introduced it, we haven’t found a better tweeter dome technology.
SOLID BODY TWEETER ASSEMBLY
Bowers & Wilkins newest Solid Body Tweeter-on-Top housing features an elongated form with a longer tube-loading system, producing an even more free and open sound with high frequencies. The carefully decoupled housing is milled from a single solid block of aluminum to better resist resonance.

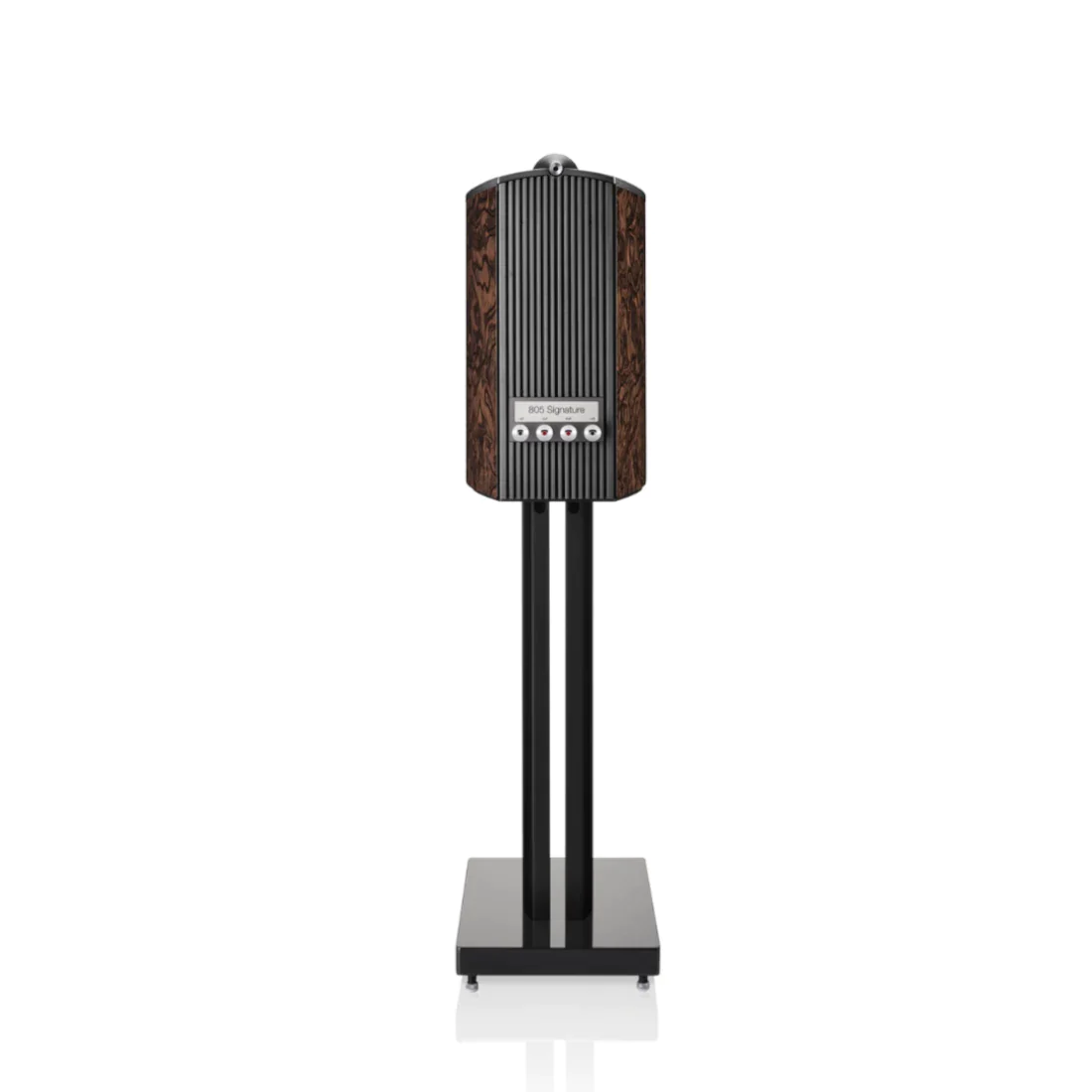

REAR-MOUNTED CROSSOVER
The new reverse-wrap orientation of the cabinet on 805 D4 means B&w were able to place its sensitive crossover components inside their own, dedicated space within the cabinet, which has critical benefits to both performance and serviceability. B&w have taken the opportunity to upgrade the speaker terminals, too.
THE SCIENCE OF SOUND
Innovation is at the heart of everything B&w do. They question, examine, understand and then evolve. Bowers & Wilkins use computer modelling to explore and reimagine every aspect of loudspeaker design.
GO LARGE
Why step up from 805 D4 to 804 D4? First, 804 D4 is a three-way speaker, with twin 165mm (6.5-in) Aerofoil™ bass cones – and that has huge benefits to its power and scale. Second, as a three-way speaker, it includes a dedicated midrange cone, so voices and other details will sound more accurate.
WARRANTY : 1-year manufacturer’s warranty
DECLARATION: All Pre-order/On-Order/Special-Color takes minimum 4-7 weeks to arrange from brand. Please speak with Customer Support Representative incase of any queries of delivery time.
